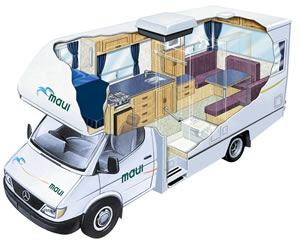

Motorhome Spirit 4 Cutawayspirit 4

The Spirit 4 is the perfect vehicle for cruising the beautiful wide-open spaces of New Zealand. With two double beds, a shower and toilet, gas stove, fridge freezer and more, it has all you need to enjoy your travels through New Zealand.


Sleeping Configuration One double bed in roof canopy 2.10m x 1.26m and one double bed in rear of cabin 2.10 x 1.22m
Linen Vehicle is supplied with all linen including pillows, sheets, sleeping bags and towels for number of people hiring the vehicle.
Power Supply 240V mains and 12V battery. The 240V mains power operates when the exterior power cable is plugged in at the campground. There are two 12V batteries, one for starting the engine and the other for domestic 12V system. Batteries are recharged by engine alternator.
Airconditioning/Heating Driver's cabin air conditioning/heating operates whilst driving. The rear cabin heating operates on 240V when plugged in at a campground. Some vehicle do have air-conditioning in rear cabin.
Lighting Interior lights operate off both 12V batteries and 240V mains supply.
Fridge/Freezer The fridge operates on 12V battery whilst driving and on 240V mains when plugged in a campground. 60 litres.
Gas Cooker A 2 ring cooker with griller ignited by match.
Gas Bottle A 9kg bottle of LPG is provided. Please ensure it is in 'OFF' position when driving.
Microwave Operates from 240V only, so vehicle must be plugged into mains power at campground to operate.
Cooking Utensils Vehicles are supplied with all cutlery, crockery and cooking utensils.
Bathroom Facilities Hot and cold pressurised water in shower cubicle with separate hand basin and amenity cabin.
Toilet Located in cubicle with shower. Flush toilet, water goes into cassette holding tank, which is accessed from exterior compartment door. A supply of toilet chemicals is provided on pick up. Toilet cassette holding tank must be flushed out and empty on drop off.
Water Heater Water heater works on gas and is operated by internal switch. Water will be heated after approximately 15 minutes.
Fresh Water Tank Capacity 85 litres. Filler hose is supplied.
Grey Water Tank Holding tank for waste water, holds 85 litres and must be empty on drop off.
Fly Screens Placed on all windows in living area.
Storage Ample cupboard space, storage under seats at rear of vehicle and hanging wardrobe.
Flooring Easy to car for linoleum
Interior Access Internal access is provided between driver's cabin and living area.
Exterior Access Side door with pull out doorstep. Ensure this is pushed when driving.

vehicle specifications

Vehicle Length 6.10 metres
Vehicle Width 2.25 metres
Vehicle External Height 3.05 metres
Vehicle Internal Height 2.00 metres
Engine Specifications 2.2 litre diesel turbo
Fuel Consumption 15 litres per 100km
Fuel Tank Capacity 75 litres
Transmission Automatic/6 speed manual
Audio System AM/FM radio cassette player, speakers in driving cabin and living area
Seatbelts 2 in front drivers cabin and 2 in the living area
Cigarette Lighter 12V, which is suitable to charge up video camera batteries
Tool Kit Located in passenger foot area.

interior layout

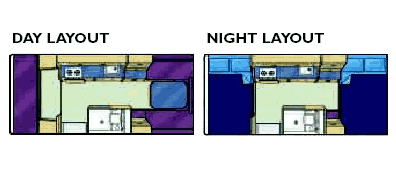

Motorhome Spirit 4 Floorplan
